Professional Manufacturing Capabilities for Coaxial Attenuators & Termination Loads with power handling capabilities from 1W to 2000W and frequency coverage up to 110GHz. A coaxial attenuator is a passive, two-port electronic component used in RF/microwave systems to intentionally reduce the power or amplitude of a signal by a specific amount (measured in dB) without significantly distorting its waveform. They are essential for protecting sensitive test equipment from overload, matching impedance, and reducing signal levels.
Key Features:
1.High Quality & Fast Delivery: Reliable products delivered promptly.
2.Expert R&D Team: Dedicated engineering support for custom solutions.
3.OEM & ODM Services: Full support for your specific design and manufacturing needs.
4.Competitive Pricing: Cost-effective solutions without compromising quality.
Technical Specifications：

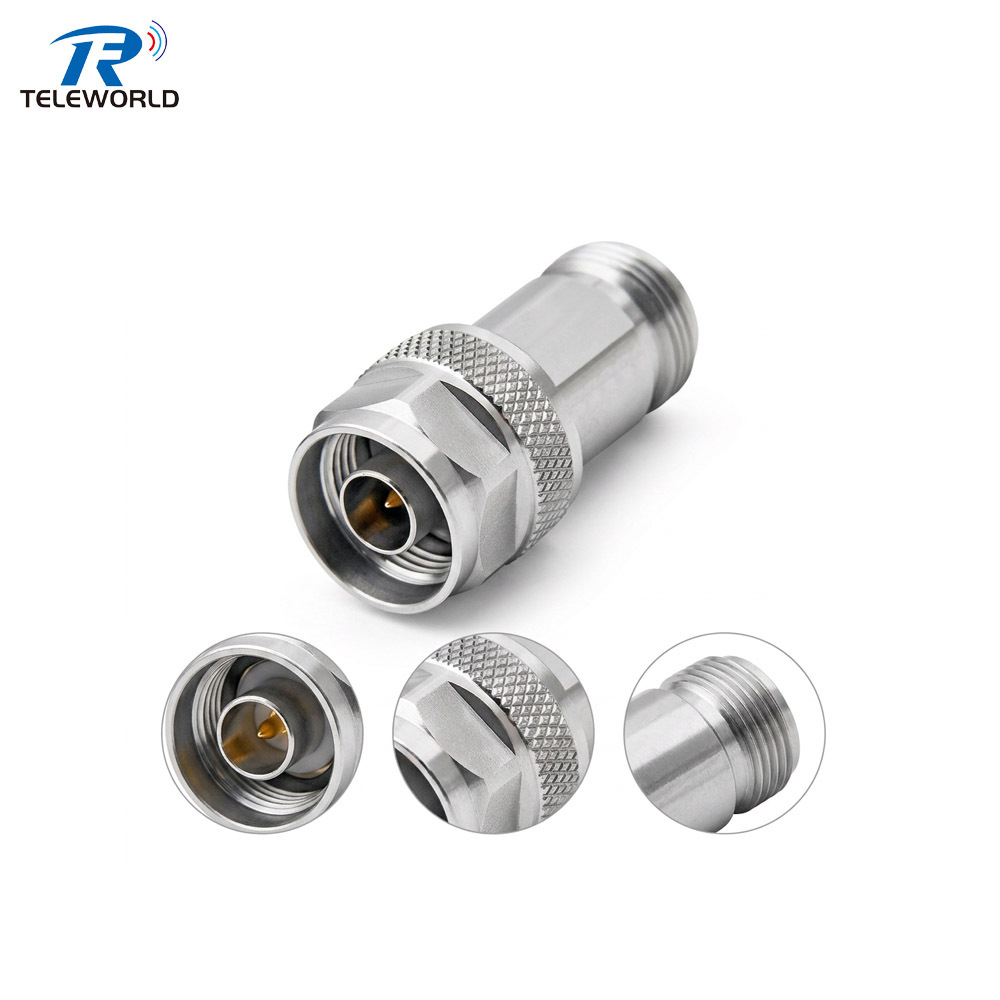

5W N male to female Fixed Attenuator 1-40dB DC-18GHz 50ohms
Nominal Impedance
50Ω
Frequency Range
DC to 18GHz
VSWR
18G ≤1.25
Power Rating
5W
Temperature Range
-55℃ to +125℃
Dimensions
¢20*40 mm
Attenuation & Accuracy
1,2,3,4,5,6,7,8,9,10,15,20,30,40dB available, and 1-2dB.±1dB,3-30dB±0.85dB
