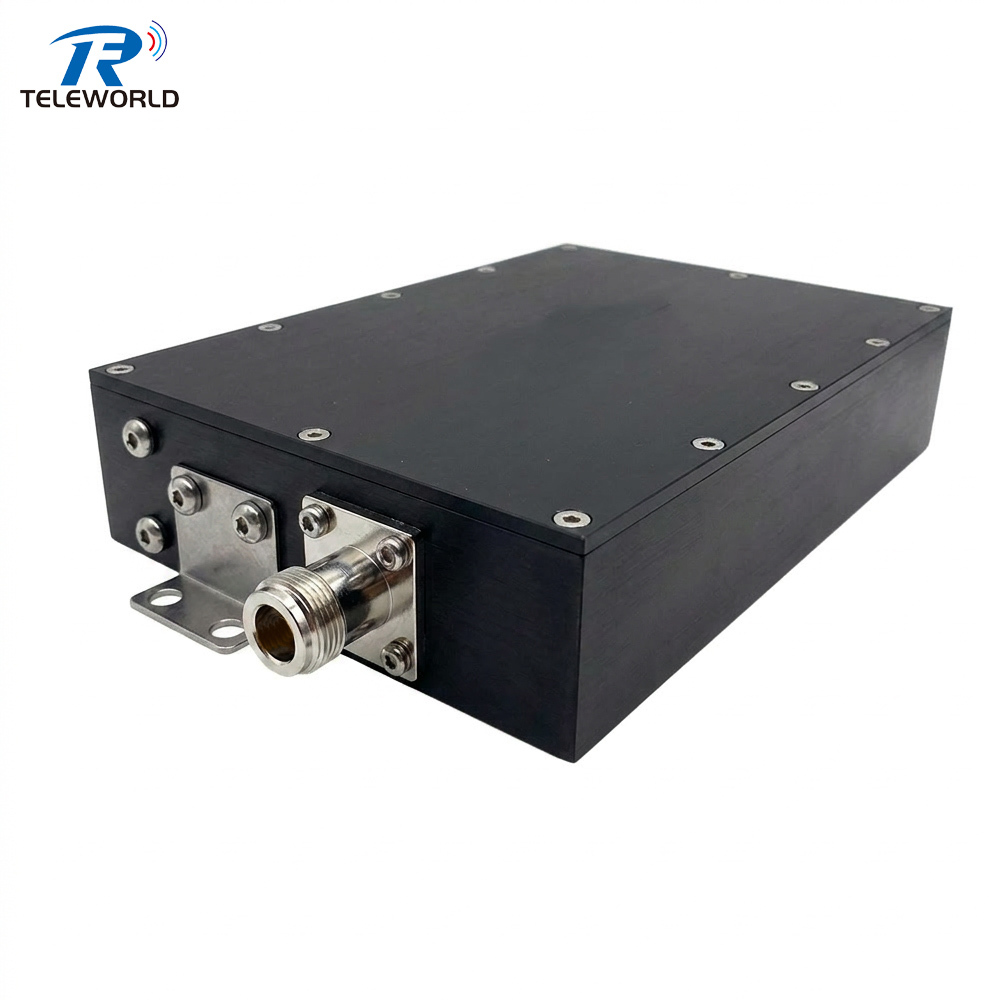

Ensure peak network performance and pristine signal clarity with our 50W Ultra-Low PIM RF Attenuator. Designed to accurately reduce signal power without introducing unwanted interference, this attenuator features an industry-leading Passive Intermodulation (PIM) rating of -160dBc.
Covering a wide broadband frequency range of 400-6000MHz, this unit is perfectly suited for modern telecommunications, seamlessly supporting Sub-6GHz 5G, 4G LTE, and Distributed Antenna Systems (DAS). Equipped with high-quality N-type connectors, this 50-watt attenuator delivers low VSWR and rugged reliability for both base station infrastructure and demanding RF laboratory testing.Technical Specifications：
|
50W Ultra-Low PIM RF Attenuator 3-40dB (-160dBc) 555-6000MHz
|
|||
|
Power Rating |
50W(100W/200W/300W/400W optional) |
Frequency Range |
400-6000MHz |
|
VSWR |
Input: 1.30:1 |
Nominal Impedance |
50Ω |
|
Temperature Range |
Work temp -40-75℃, Store temp -50-85℃ |
||
|
PIM 2X43dBm |
-160dBc (﹣168dBc typical ) |
||
|
Connector |
N female connector(4.3-10 optional) |
||
|
Attenuation & Accuracy |
6.10.20.30dB available, and.6-30dB ±2dB |
||
