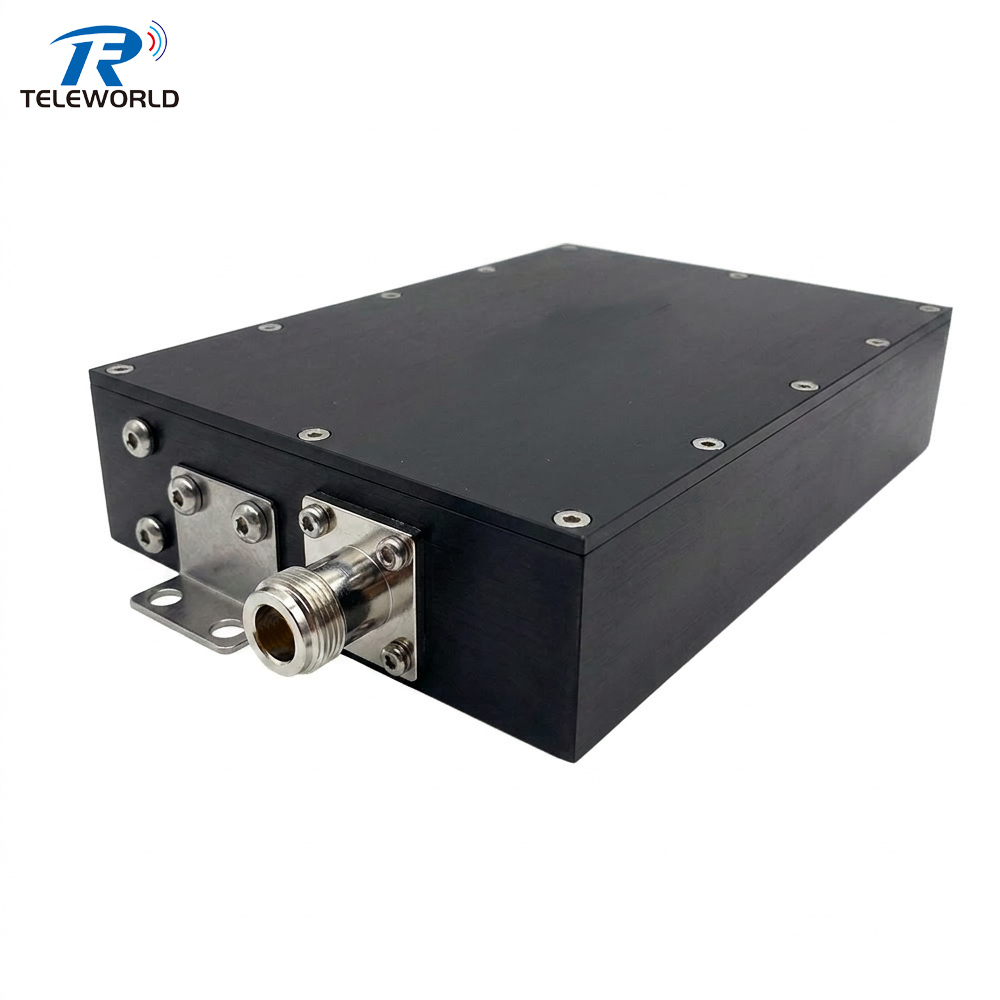

50W Low PIM Termination. Engineered for precision, this wideband dummy load operates across a 555MHz to 6000MHz frequency range, making it fully compatible with 5G, LTE, and CBRS deployments. Featuring an ultra-low Passive Intermodulation (PIM) rating of ≤-160dBc, it ensures minimal signal distortion and interference in sensitive Distributed Antenna Systems (DAS) and small cell installations. The rugged N-type connector and efficient heat dissipation design provide long-term reliability for both testing and field applications.
Technical Specifications：
|
50W Ultra-Low PIM Termination (-160dBc)400-6000MHz N female connector
|
|||
|
Power Rating |
50W(100W/200W/300W/400W optional) |
Frequency Range |
400-6000MHz |
|
VSWR |
1.40:1@400-600MHz |
Nominal Impedance |
50Ω |
|
Temperature Range |
Work temp -40-75℃, Store temp -50-85℃ |
||
|
PIM 2X43dBm |
-160dBc (﹣168dBc typical ) |
||
|
Connector |
N/4.3-10/7/16 DIN male and female optional |
||
