Ensure peak network performance and pristine signal clarity with our 400W Ultra-Low PIM RF Attenuator. Designed to accurately reduce signal power without introducing unwanted interference, this attenuator features an industry-leading Passive Intermodulation (PIM) rating of -160dBc.
Covering a wide broadband frequency range of 555-6000MHz, this unit is perfectly suited for modern telecommunications, seamlessly supporting Sub-6GHz 5G, 4G LTE, and Distributed Antenna Systems (DAS). Equipped with high-quality 4.3-10 type connectors, this 400-watt attenuator delivers low VSWR and rugged reliability for both base station infrastructure and demanding RF laboratory testing.Technical Specifications：
|

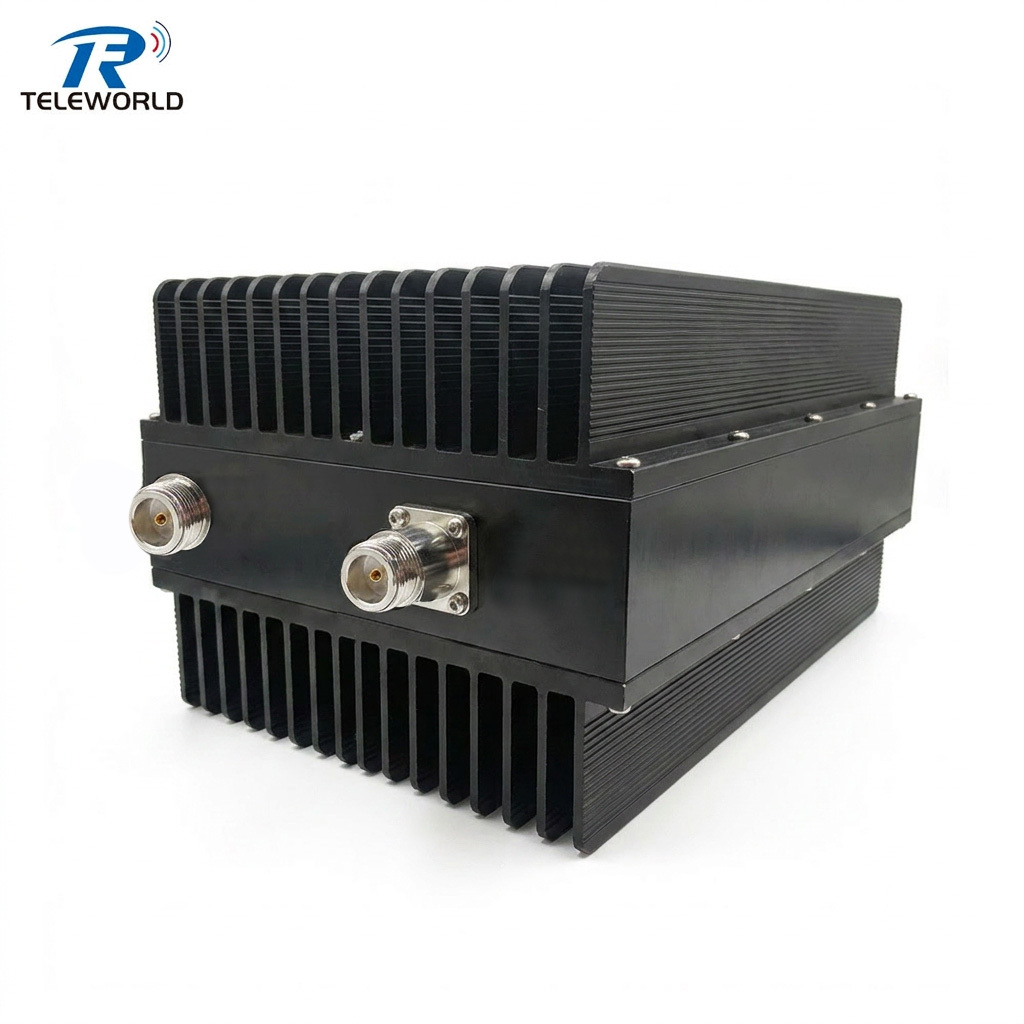

400W N female Ultra-Low PIM RF Attenuator 3-40dB (-160dBc) 555-6000MHz
|
|||
|
Power Rating |
400W(50W/100W/200W/300W optional) |
Frequency Range |
555-6000MHz |
|
VSWR |
Input: 1.30:1 |
Nominal Impedance |
50Ω |
|
Temperature Range |
Work temp -40-75℃, Store temp -50-85℃ |
||
|
PIM 2X43dBm |
-160dBc (﹣168dBc typical ) |
||
|
Connector |
4.3-10 female(N optional) |
||
|
Attenuation & Accuracy |
3.6.10.15.20.30.40dB available, and 3dB±0.6dB,6-40dB ±2dB |
||
