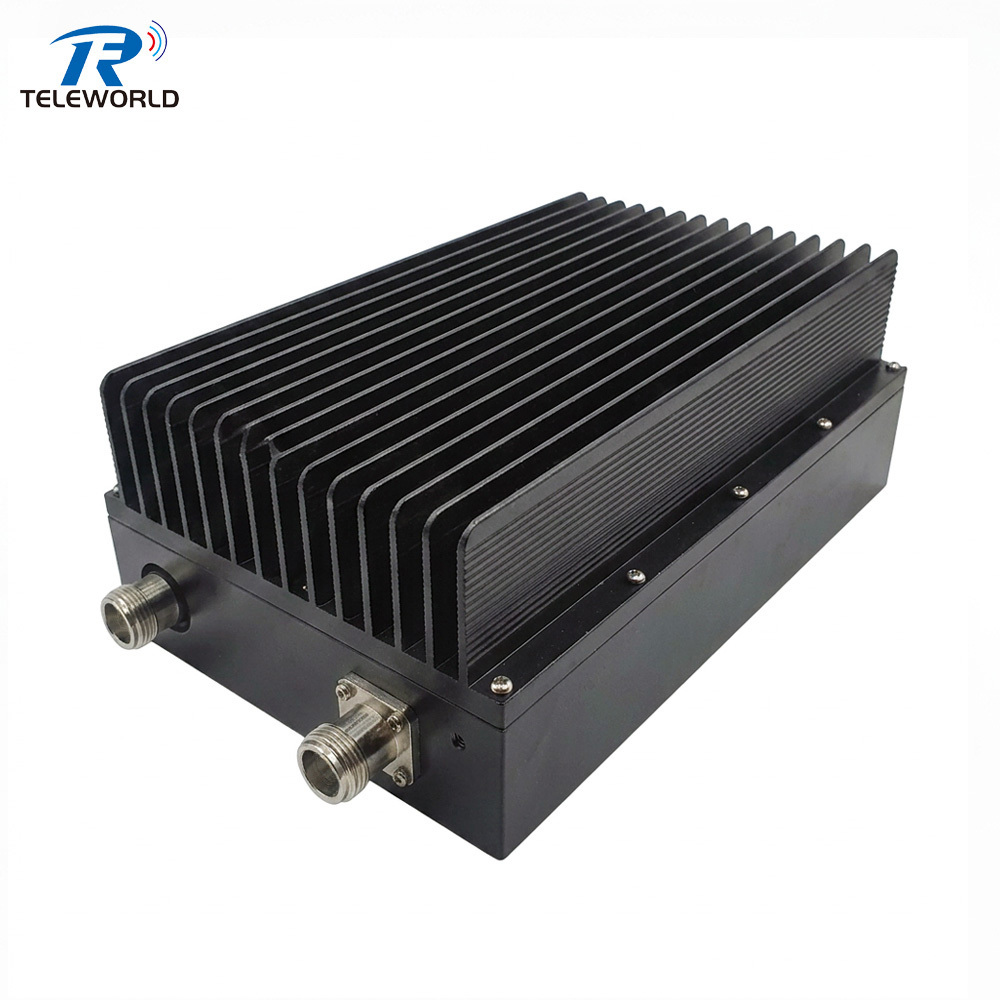

Ensure peak network performance and pristine signal clarity with our 300W Ultra-Low PIM RF Attenuator. Designed to accurately reduce signal power without introducing unwanted interference, this attenuator features an industry-leading Passive Intermodulation (PIM) rating of -160dBc.
Covering a wide broadband frequency range of 500-8500MHz, this unit is perfectly suited for modern telecommunications, seamlessly supporting Sub-6GHz 5G, 4G LTE, and Distributed Antenna Systems (DAS). Equipped with high-quality N type connectors, this 50-watt attenuator delivers low VSWR and rugged reliability for both base station infrastructure and demanding RF laboratory testing.Technical Specifications：
|
300W N Low PIM RF Attenuator (-160dBc) 500-8500MHz 10.20.30dB
|
|||
|
Power Rating |
300W(50W/100W/200W/400W optional) |
Frequency Range |
500-8500MHz |
|
VSWR(IN Port) |
1.3@0.5-1GHz |
Nominal Impedance |
50Ω |
|
Temperature Range |
Work temp -40-75℃, Store temp -50-85℃ |
||
|
PIM 2X43dBm |
-160dBc (﹣168dBc typical ) |
||
|
Connector |
N female connector(4.3-10 optional) |
||
|
Attenuation & Accuracy |
10dB,20dB,30dB(-2.5dB@0.5-1GHz,±1.5dB@1-8.5GHz) |
||
