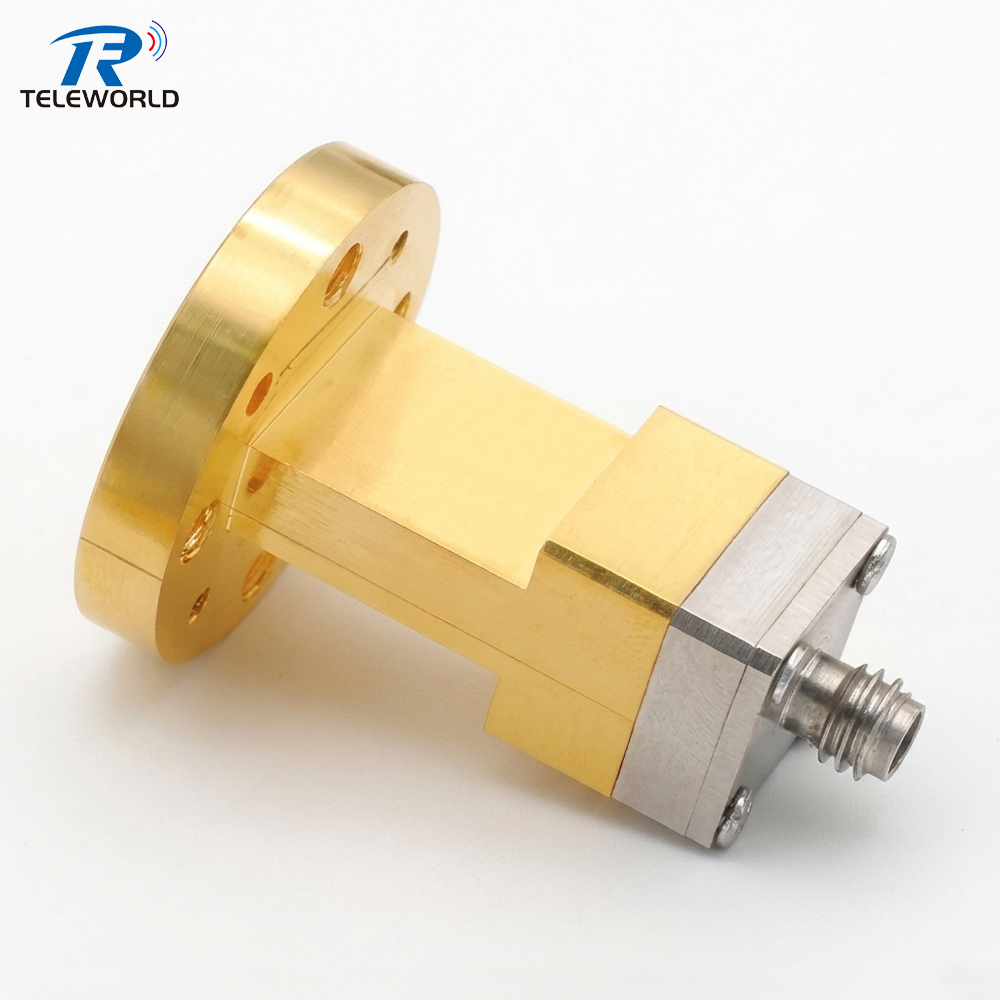

WR10 to 1.0mm Female End-Launch Waveguide Adapter, 75 GHz – 110 GHz (W-Band)

The RFteleworld WR10-1.0F is a high-performance, metrology-grade transition designed to bridge the gap between W-Band waveguide systems and 110 GHz coaxial environments. Covering the complete 75 to 110 GHz spectrum, this adapter is an essential component for engineers working at the cutting edge of 6G wireless, 94GHz Millimeter-Wave Imaging, and Sub-THz sensing.

Crafted with a gold-plated oxygen-free copper body and a precision-machined 1.0mm interface, this adapter ensures minimal insertion loss and industry-leading return loss performance. It is fully compatible with metrology-grade test equipment from Keysight, Anritsu, and Rohde & Schwarz.

Key Technical Specifications:

• Frequency Range: 75 GHz to 110 GHz (Full W-Band)
• Waveguide Size: WR-10 (R900)
• Coaxial Connector: 1.0mm Female (W-Connector / W1)
• VSWR: ≤ 1.60:1 (Typical across the full band)
• Insertion Loss: ≤ 1.2 dB (Typical)
• Flange Type: UG-387/U-M (Circular Precision Flange)
• Orientation: End-Launch (Straight)
• Body Material: Gold-Plated Oxygen-Free Copper or Brass
• Connector Material: Passivated Stainless Steel with Gold-Plated BeCu Center Contact
